  1. Guide
  2. Client Management

GTW LDAP IdP

PreviousGTW OAuth 2.0 IdPNextGTW API IdP

Was this helpful?

Path: Client Management > GTW LDAP IdP

In this section, you can find instructions on how to maintain the LDAP/Windows AD authentication servers using the gateway.

Search GTW LDAP IdP

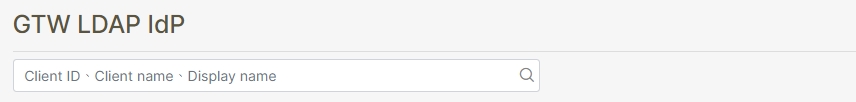

To search for GTW LDAP IdP, you can search using the relevant information as keywords.

Client ID of GTW LDAP IdP

  1. Users can create, update, view details, and delete them from client IDs.

Create Client ID

In this section, you can find instructions on how to add an LDAP connection information under this client ID.

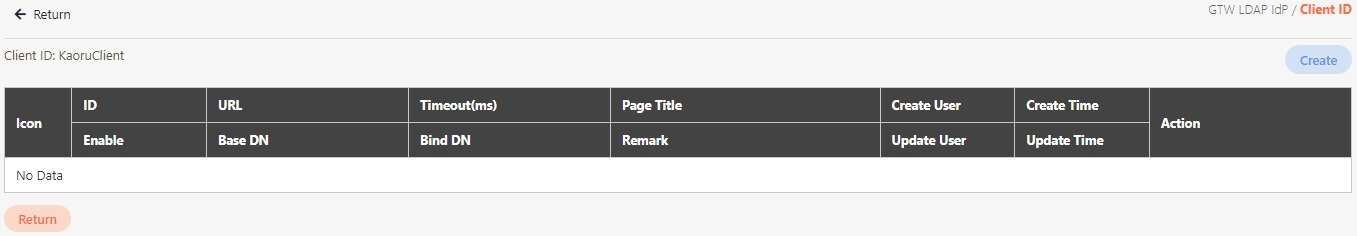

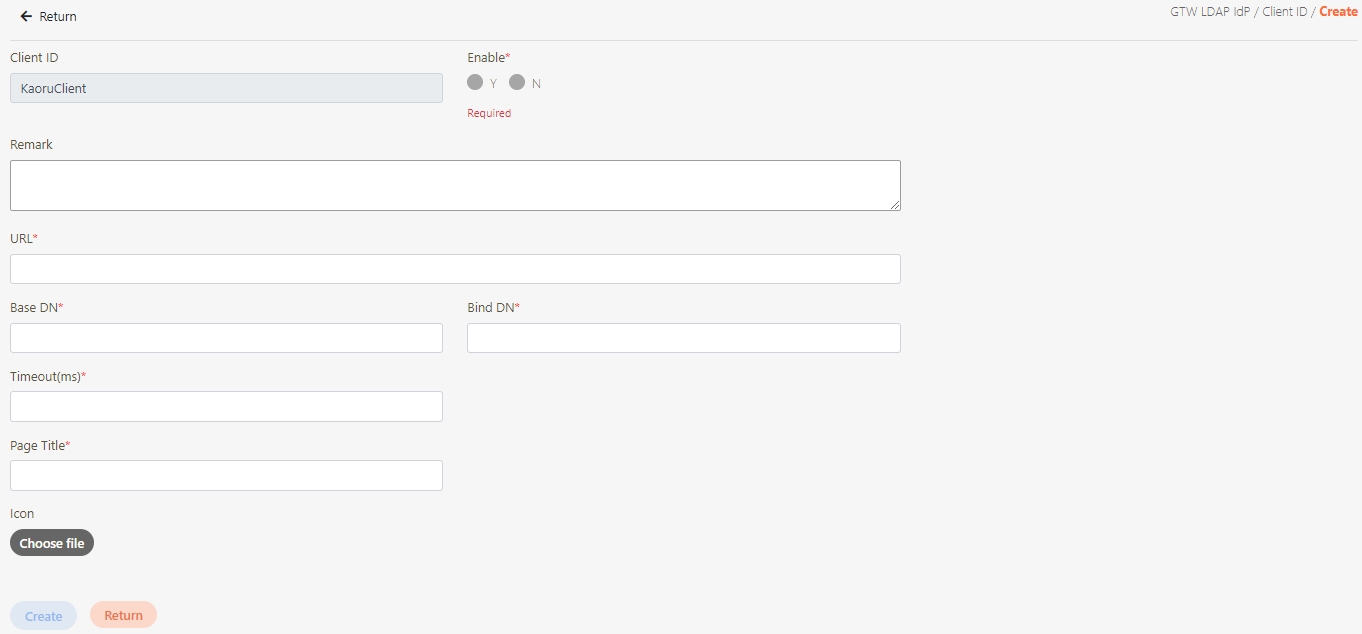

  1. Click Create to access the creation page.

  1. Fill in the data or make selections as instructed below. The fields marked with “*” are required.

  • Client Id*: A unique identifier used by third-party applications for identification and accessing protected resources.

  • Enable*: This account is active (Y) or inactive (N).

  • Remark: User's comments.

  • URL*: LDAP / Windows AD host location, one URL can be created.

  • Base DN*: Specify the start or root node for the search in the LDAP directory tree.

  • Bind DN*: A node in the LDAP directory tree used to verify the identity of a user or application for appropriate actions in the directories.

  • Timeout(ms)*: Expiration time (unit: milliseconds).

  • Page Title*: Header of the login page.

  • Icon: Click Choose file to select and upload an identifiable LDAP image.

  1. Click Create to save and exit.

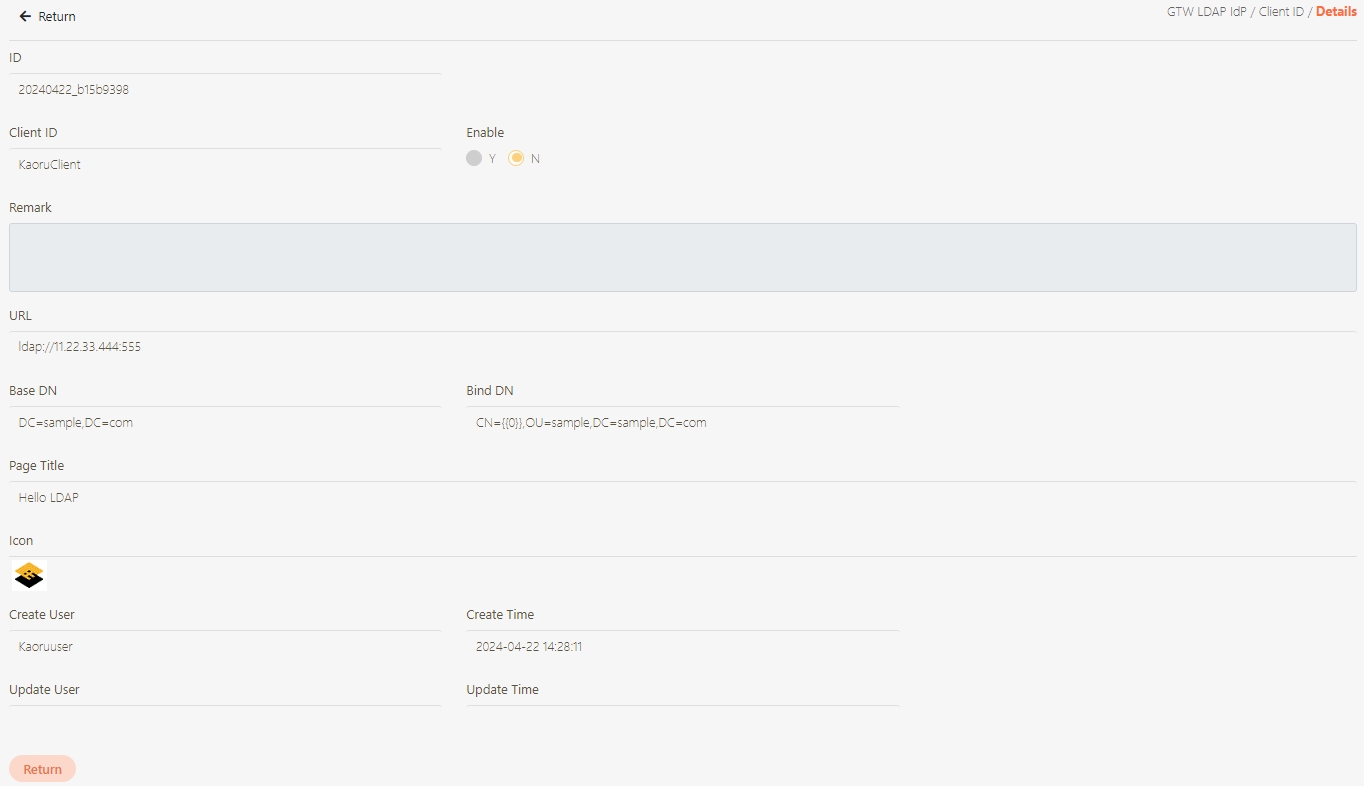

View Client ID

Update Client ID

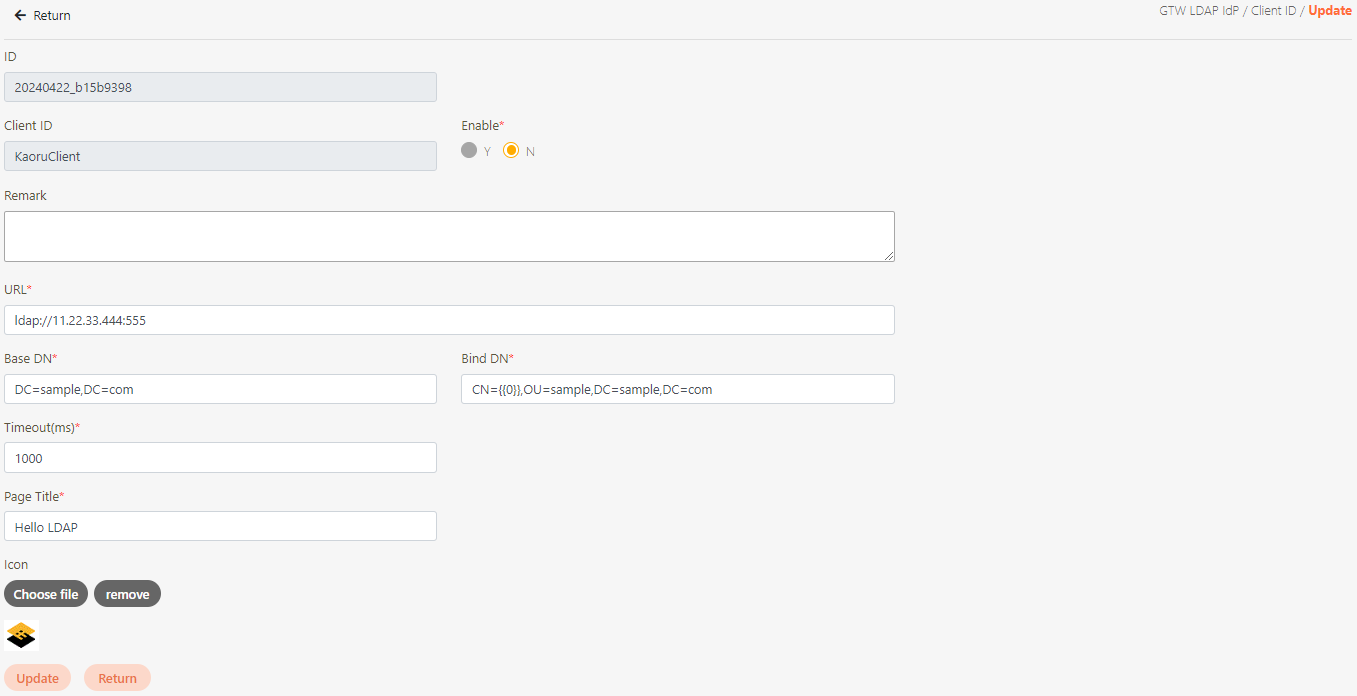

  1. Modify the desired fields, and click Update to save and exit.

Delete Client ID

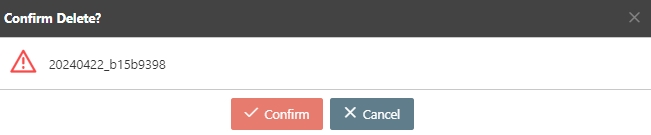

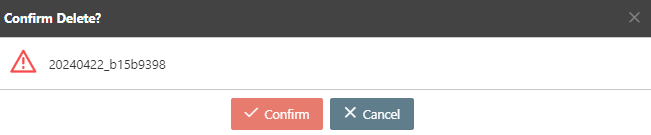

  1. A warning prompt displaying the message “Confirm Delete?” will pop up. Click Confirm to delete this client ID and exit.

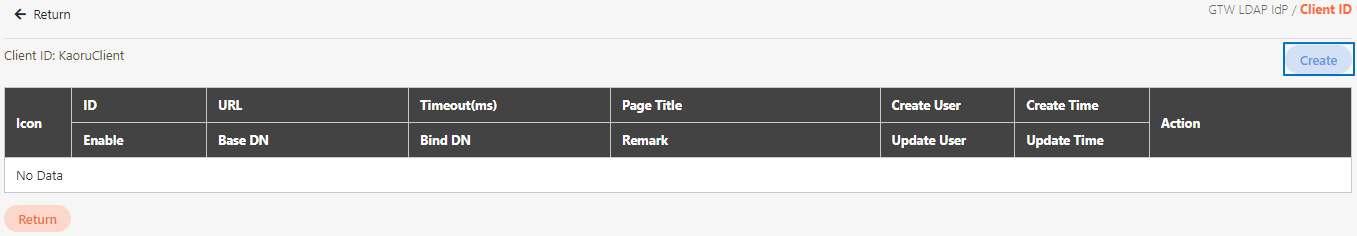

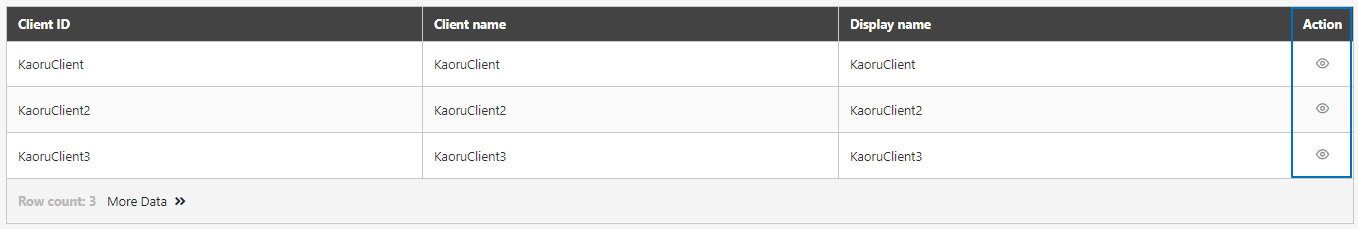

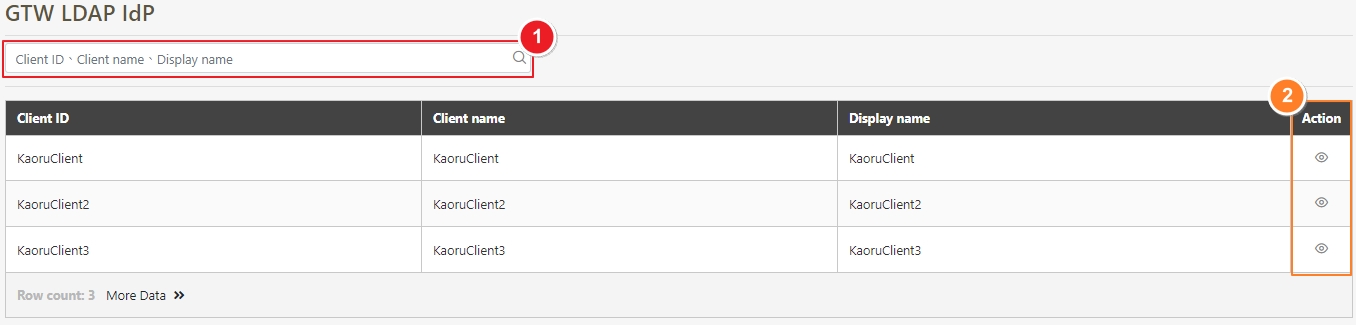

To view the details of GTW LDAP IdP, you can search using the relevant information as keywords, and click on the icon to access the Client ID page.

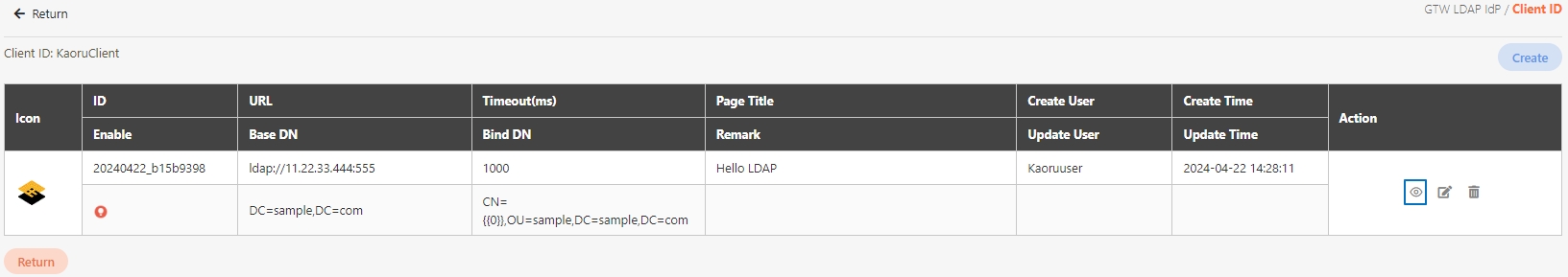

Search for the client ID you want to view details, and click on the icon to access the Details page.

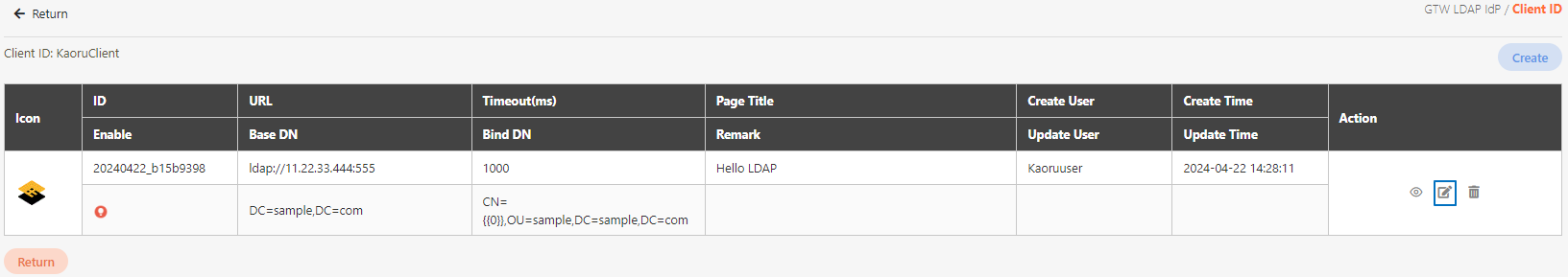

Search for the client ID to modify, and click on the icon to access the update page.

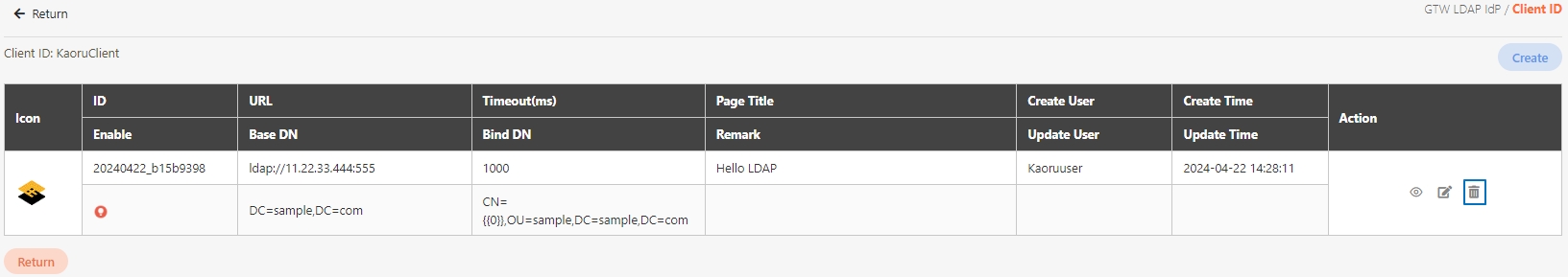

Select the client ID to delete, and click on the icon to proceed.
