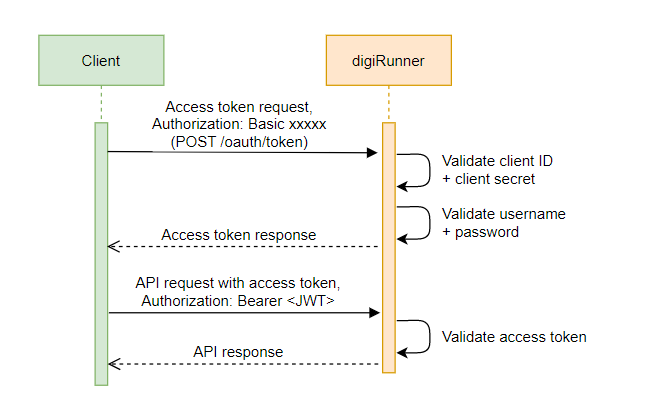

Password Mode
Was this helpful?
Was this helpful?
Example request:
Parameters with details:
client_secret
String
Required
1. Client Password registered with digiRunner; needs to be encoded with Base64
2. Concatenate the client ID with ":" and the encoded client password, then encode the result with Base64 again to generate the value to be used
3. Example:
Client ID: tspclient
Client Password: tsp123abcd
Formula for generating the value:
Base64 Encode(ClientID+":"+Base64 Encode(Client Password))
Base64 Encode(tspclient+":"+Base64 Encode(tsp123abcd))
Base64 Encode(tspclient:dHNwMTIzYWJjZA==)
Output for client_secret:
dHNwY2xpZW50OmRITndNVEl6WVdKalpBPT0=
grant_type
String
Required
password, a fixed value
username
String
Required
User account applied with digiRunner
user_secret
String
Required
User password applied with digiRunner, which needs to be Base64 encoded (e.g., if the password is "user123abcd," after encoding, it will be "dXNlcjEyM2FiY2Q="). Use the encoded value as the Value.
Example
User Password: user123abcd
Formula for generating the value of user_secret:
Base64Encode(User Password))
Output for user_secret:
dXNlcjEyMw==
Example:
If the user password is incorrect, a 401 Unauthorized HTTP status code and JSON response will be returned.
Example:
After obtaining the access token issued by digiRunner, TSP can utilize the associated permissions to call APIs registered in digiRunner.
For the request example and parameter with details, refer to OpenID Connect (OIDC) Mode > .
