Password Mode

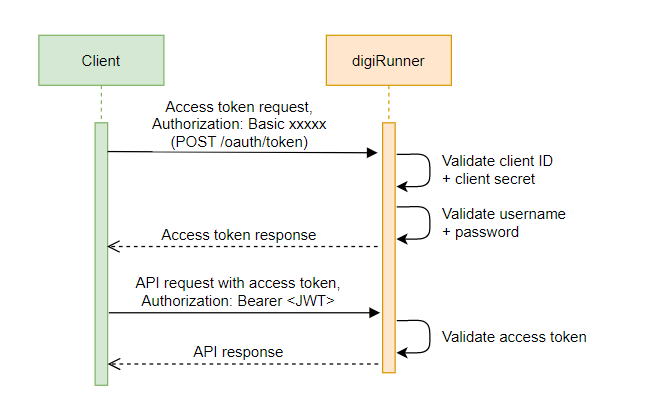

Workflow

Example request:

curl -v -X POST 'https://{digiRunner_DOMAIN}/oauth/token' \
-H 'Content-Type: application/x-www-form-urlencoded' \
-H 'Authorization: Basic {client_secret}' \
-d 'grant_type=password' \
-d 'username={username}' \
-d 'password={user_secret}'

Parameters with details:

Parameter	Type	Requirement	Description
client_secret	String	Required	1. Client Password registered with digiRunner; needs to be encoded with Base64 2. Concatenate the client ID with ":" and the encoded client password, then encode the result with Base64 again to generate the value to be used 3. Example: Client ID: tspclient Client Password: tsp123abcd Formula for generating the value: Base64 Encode(ClientID+":"+Base64 Encode(Client Password)) Base64 Encode(tspclient+":"+Base64 Encode(tsp123abcd)) Base64 Encode(tspclient:dHNwMTIzYWJjZA==) Output for client_secret: dHNwY2xpZW50OmRITndNVEl6WVdKalpBPT0=
grant_type	String	Required	password, a fixed value
username	String	Required	User account applied with digiRunner
user_secret	String	Required	User password applied with digiRunner, which needs to be Base64 encoded (e.g., if the password is "user123abcd," after encoding, it will be "dXNlcjEyM2FiY2Q="). Use the encoded value as the Value. Example User Password: user123abcd Formula for generating the value of user_secret: Base64Encode(User Password)) Output for user_secret: dXNlcjEyMw==

Example of Successful Response

Example:

{
"access_token": "eyJ0eXAiOiJKV1QiLCJhbGciOiJSUzI1NiJ9.eyJub2RlIjoiZXhlY3V0b3IxIiwiYXVkIjpbIllXUnRhVzVCVUVrIl0sInVzZXJfbmFtZSI6InRzcHVzZXIiLCJvcmdfaWQiOiIxMDAwMDAiLCJzY29wZSI6WyIyMDAwMDAwMDA2Il0sInN0aW...",
"expires_in": 86399,
"jti": "3a26a644-4fb4-45bc-83a7-a0f583643bf0",
"node": "executor1",
"org_id": "100000",
"refresh_token": "eyJ0eXAiOiJKV1QiLCJhbGciOiJSUzI1NiJ9.eyJub2RlIjoiZXhlY3V0b3IxIiwiYXVkIjpbIllXUnRhVzVCVUVrIl0sInVzZXJfbmFtZSI6InRzcHVzZXIiLCJvcmdfaWQiOiIxMDAwMDAiLCJzY29wZSI6WyIyMDAwMDAwMDA2Il0sImF0aS...",
"scope": "2000000006",
"stime": 1684833178931,
"token_type": "bearer"
}

Example of Error Response

If the user password is incorrect, a 401 Unauthorized HTTP status code and JSON response will be returned.

Example:

{
"error": "invalid_grant",
"error_description": "Bad credentials"
}

Calling APIs Registered in digiRunner with Access Token

After obtaining the access token issued by digiRunner, TSP can utilize the associated permissions to call APIs registered in digiRunner.

For the request example and parameter with details, refer to OpenID Connect (OIDC) Mode > Calling APIs Registered in digiRunner with Access Token.
